Paloalto Networks PCNSE Palo Alto Networks Certified Security Engineer (PCNSE) PAN-OS 10.2 Exam Practice Test

• A, C, and D are the correct answers because they are the parts of a template that an engineer can configure in Panorama. A template is a collection of device and network settings that can be pushed to multiple firewalls from Panorama1. A template can contain settings such as2:

https://docs.paloaltonetworks.com/globalprotect/9-1/globalprotect-admin/globalprotect-gateways/split-tunnel-traffic-on-globalprotect-gateways/configure-a-split-tunnel-based-on-the-domain-and-application

If the DNS response matches the Original Destination Address in the rule, translate the DNS response using the same translation the rule uses. For example, if the rule translates IP address 1.1.1.10 to 192.168.1.10, the firewall rewrites a DNS response of 1.1.1.10 to 192.168.1.10. https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/networking/nat/source-nat-and-destination-nat/destination-nat-dns-rewrite-use-cases#id0d85db1b-05b9-4956-a467-f71d558263bb

'Implicitly Uses' has web-browsing listed. This means that if you allow facebook-posting, that it will also be allowing the web-browsing application implicitly.. In our case, we dont know which APP the question referes too but 'Implicitly means already uses HTTP.

• A and D are the best practice deployment modes for the firewall if the company wants to add threat prevention to the network without redesigning the network routing. This is because these modes allow the firewall to act as a transparent device that does not affect the existing network topology or routing1.
• A: VirtualWire mode allows the firewall to be inserted into any existing network segment without changing the IP addressing or routing of that segment2. The firewall inspects traffic between two interfaces that are configured as a pair, called a virtual wire. The firewall applies security policies to the traffic and forwards it to the same interface from which it was received2.
• D: Layer 2 mode allows the firewall to act as a switch that forwards traffic based on MAC addresses3. The firewall inspects traffic between interfaces that are configured as Layer 2 interfaces and belong to the same VLAN. The firewall applies security policies to the traffic and forwards it to the appropriate interface based on the MAC address table3.

Verified References:

• 1: https://www.garlandtechnology.com/blog/whats-your-palo-alto-ngfw-deployment-plan
• 2: https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-admin/networking/configure-interfaces/virtual-wire.html
• 3: https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-admin/networking/configure-interfaces/layer-2.html

To apply tags automatically based on User-ID logs, the engineer must configure a Log Forwarding profile that specifies the criteria for matching the logs and the tags to apply. The Log Forwarding profile can be attached to a security policy rule or a decryption policy rule to enable auto-tagging for the traffic that matches the rule. The tags can then be used for dynamic address groups, policy enforcement, or reporting1. References: Use Auto-Tagging to Automate Security Actions, PCNSE Study Guide (page 49)

The firewall can use three multi-factor authentication methods to authenticate access to the firewall: SMS, user certificate, and one-time password. These methods can be used in combination with other authentication factors, such as username and password, to provide stronger security for accessing the firewall web interface or CLI. The firewall can integrate with various MFA vendors that support these methods through RADIUS or SAML protocols5. Voice and fingerprint are not supported by the firewall as MFA methods. References: MFA Vendor Support, PCNSE Study Guide (page 48)

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/firewall-administration/manage-firewall-administrators/administrative-authentication#:~:text=The%20administrative%20accounts%20are%20defined,attributes%20on%20the%20SAML%20server .

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/threat-prevention/prevent- credential-phishing/set-up-credential-phishing-prevention#idc77030dc-6022-4458-8c50-1dc0fe7cffe4

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/url-filtering/prevent-credential-phishing/set-up-credential-phishing-prevention

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/high-availability/ha-concepts/ha-timers

traffic log would list an application as “not-applicable” if the firewall denied the traffic before the application match could be performed. This can happen if the traffic matches a security rule that is set to deny based on any parameter other than the application, such as source, destination, port, service, etc1. In this case, the firewall does not inspect the application data and discards the traffic, resulting in a “not-applicable” entry in the application field of the traffic log1.

The New App-ID characteristic enables the firewall to monitor new applications on the network, so that the engineer can better assess the security policy updates they might want to make. The New App-ID characteristic always matches to only the new App-IDs in the most recently installed content releases. When a new content release is installed, the New App-ID characteristic automatically begins to match only to the new App-IDs in that content release version. This way, the engineer can see how the newly-categorized applications might impact security policy enforcement and make any necessary adjustments. References: Monitor New App-IDs

Traffic view in the Monitor tab of the firewall GUI can display the information about the NAT policy that is in use for a traffic flow, if the Source or Destination NAT columns are included and reviewed in the detailed log view1. The Source NAT column shows the translated source IP address and port, and the Destination NAT column shows the translated destination IP address and port2. These columns can help the administrator identify which NAT policy is applied to the traffic flow based on the pre-NAT and post-NAT addresses and ports.

The Exceptions settings allows you to change the response to a specific signature. For example, you can block all packets that match a signature, except for the selected one, which generates an alert. The Exception tab supports filtering functions.

If you not believed, then login the firewall go to Vulnerability > Exceptions and select "Show all signatures". From there you will see all threat information including specific actions.

More detail: https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000Cm4yCAC

In an active/active high availability (HA) firewall pair, the firewall that is currently processing traffic is in the “Active” state. This state indicates that the firewall is fully functional and can own sessions and set up sessions. An active firewall can be either active-primary or active-secondary, depending on the Device ID and the HA configuration. An active-primary firewall connects to User-ID agents, runs DHCP server and DHCP relay, and matches NAT and PBF rules with the Device ID of the active-primary firewall. An active-secondary firewall connects to User-ID agents, runs DHCP server, and matches NAT and PBF rules with the Device ID of the active-secondary firewall. An active-secondary firewall does not support DHCP relay1. References: HA Firewall States, PCNSE Study Guide (page 53)

https://docs.paloaltonetworks.com/compatibility-matrix/supported-os-releases-by-model/palo-alto-networks-next-gen-firewalls

https://docs.paloaltonetworks.com/panorama/9-1/panorama-admin/manage-firewalls/manage-device-groups/manage-the-rule-hierarchy#idfb9e2593-a7f1-4e0d-aab5-a2903d654c99 https://docs.paloaltonetworks.com/panorama/9-1/panorama-admin/panorama-overview/centralized-firewall-configuration-and-update-management/device-groups/device-group-policies#id671977ca-1041-4605-8a80-fbc10f3f5d7b

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-new-features/user-id-features/dynamic-user-groups

Use the dynamic user group in a policy to regulate traffic for the members of the group. You will need to configure at least two rules: one to allow initial traffic to populate the dynamic user group and one to deny traffic for the activity you want to prevent (in this case, questionable-activity). To tag users, the rule to allow traffic must have a higher rule number in your rulebase than the rule that denies traffic.

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/policy/use-dynamic-user-groups-in-policy

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/certificate-management/configure-an-ssltls-service-profile

The two key exchange algorithms that consume the most resources when decrypting SSL traffic are ECDHE and DHE. These are both Diffie-Hellman based algorithms that enable perfect forward secrecy (PFS), which means that they generate a new and unique session key for each SSL/TLS session, and do not reuse any previous keys. This enhances the security of the encrypted communication, but also increases the computational cost and complexity of the key exchange process. ECDHE stands for Elliptic Curve Diffie-Hellman Ephemeral, which uses elliptic curve cryptography (ECC) to generate the session key. DHE stands for Diffie-Hellman Ephemeral, which uses modular arithmetic to generate the session key. Both ECDHE and DHE require more CPU and memory resources than RSA, which is a non-PFS algorithm that uses public and private keys to encrypt and decrypt the session key123. References: Key Exchange Algorithms, Best Practices for Enabling SSL Decryption, PCNSE Study Guide (page 60)

For the transparent proxy method, the request contains the destination IP address of the web server and the proxy transparently intercepts the client request (either by being in-line or by traffic steering). There is no client configuration and Panorama is optional. Transparent proxy requires a loopback interface, User-ID configuration in the proxy zone, and specific Destination NAT (DNAT) rules. Transparent proxy does not support X-Authenticated Users (XAU) or Web Cache Communications Protocol (WCCP). https://docs.paloaltonetworks.com/pan-os/11-0/pan-os-new-features/networking-features/web-proxy

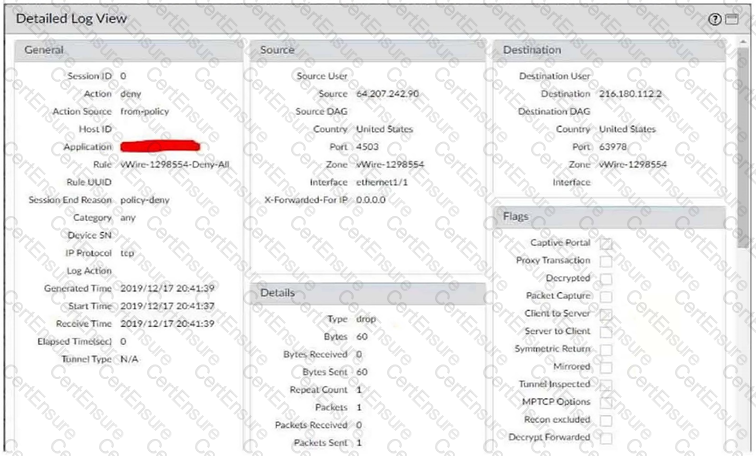

Traffic didnt match any other policies and so landed at the implicit "deny all" policy. If it's deny all, the traffic was dropped before the application could be determined. https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClibCAC

 The correct packet-flow sequence is C. PBF > Static route > Security policy enforcement. This sequence describes the order of operations that the firewall performs when processing a packet. PBF stands for Policy-Based Forwarding, which is a feature that allows the firewall to override the routing table and forward traffic based on the source and destination addresses, application, user, or service. PBF is evaluated before the static route lookup, which is the default method of forwarding traffic based on the destination address and the longest prefix match. Security policy enforcement is the stage where the firewall applies the security policy rules to allow or block traffic based on various criteria, such as zone, address, port, user, application, etc12. References: Policy-Based Forwarding, Packet Flow Sequence in PAN-OS

TIPS & TRICKS: REDUCING MANAGEMENT PLANE LOAD:

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClSvCAK

TIPS & TRICKS: REDUCING MANAGEMENT PLANE LOAD—PART 2:

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClU4CAK

When sizing a decryption firewall deployment, two factors that should be considered are the encryption algorithm and the TLS protocol version. These factors affect the amount of resources and processing power that the firewall needs to decrypt and inspect SSL/TLS traffic.

The encryption algorithm is the method that the server and the client use to encrypt and decrypt the data exchanged in an SSL/TLS session. Different encryption algorithms have different levels of security and performance. For example, AES is a symmetric encryption algorithm that is faster and more efficient than RSA, which is an asymmetric encryption algorithm. However, RSA is more secure than AES because it uses public and private keys to encrypt and decrypt data, while AES uses a single shared key. The firewall must support the encryption algorithms that are used by the servers and clients that it decrypts, and it must have enough CPU and memory resources to handle the decryption workload12.

The TLS protocol version is the standard that defines how the server and the client establish and maintain an SSL/TLS session. Different TLS protocol versions have different features and requirements for encryption algorithms, cipher suites, certificates, handshake messages, etc. For example, TLS 1.3 is the latest and most secure version of TLS, which supports only strong encryption algorithms and cipher suites, such as AES-GCM and ChaCha20-Poly1305, and requires elliptic curve certificates. The firewall must support the TLS protocol versions that are used by the servers and clients that it decrypts, and it must have enough hardware acceleration resources to handle the decryption speed34.

The number of security zones in decryption policies and the number of blocked sessions are not relevant factors for sizing a decryption firewall deployment. The number of security zones in decryption policies only affects how the firewall matches traffic to decryption rules based on source and destination zones, but it does not affect the decryption performance or resource consumption. The number of blocked sessions only indicates how many sessions are denied by the firewall based on security policy or decryption policy rules, but it does not affect the decryption capacity or throughput56.

References: Encryption Algorithms, TLS Protocol Versions, Decryption Policy, PCNSE Study Guide (page 60)

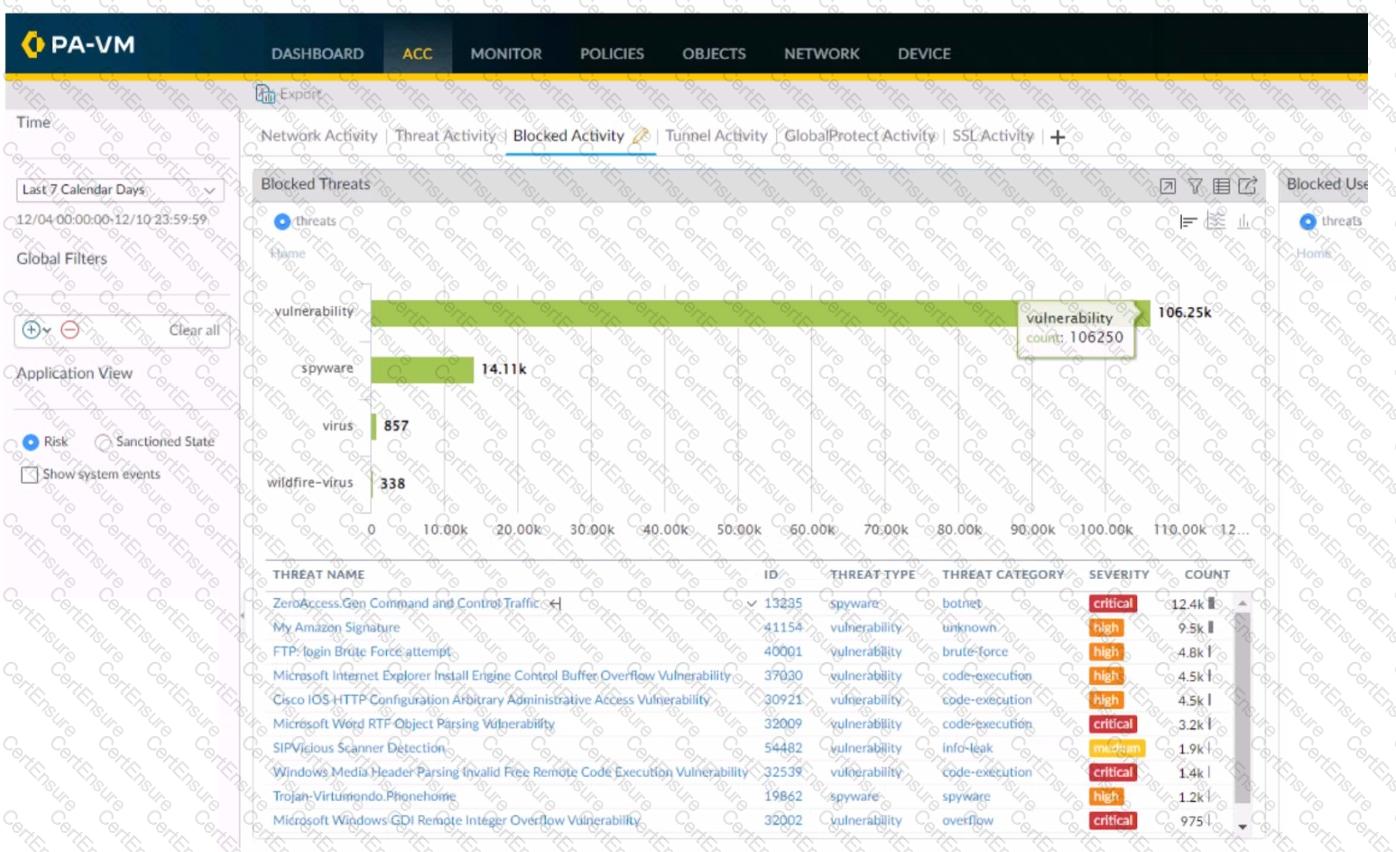

Hover over an attribute in the table below the chart and click the arrow icon to the right of the attribute. https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/monitoring/use-the-application-command-center/interact-with-the-acc#id5cc39dae-04cf-4936-9916-1a4b0f3179b9

If some sites cannot be decrypted due to technical reasons, such as unsupported ciphers, and blocking them is not an option, then the engineer should add the sites to the SSL Decryption Exclusion list to exempt them from decryption. The SSL Decryption Exclusion list is a predefined list of sites that are not subject to SSL decryption by the firewall. The list includes sites that use certificate pinning, mutual authentication, or unsupported cipher suites. The engineer can also add custom sites to the list if they have a valid business reason or technical limitation for not decrypting them34. Adding the sites to the SSL Decryption Exclusion list will allow the traffic to pass through without being decrypted or blocked by the firewall. References: SSL Decryption Exclusion, Troubleshoot Unsupported Cipher Suites

A: https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-web-interface-help/network/network-virtual-routers/more-runtime-stats-for-a-logical-router#id5628a5e4-e908-457e-a2fd-270a476ab752

D: https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-cli-quick-start/cli-cheat-sheets/cli-cheat-sheet-networking

• B is the best choice for an SSL Forward Untrust certificate because a self-signed certificate generated on the firewall is not trusted by any client browsers by default1. This means that if the firewall observes an invalid or untrusted security certificate from the server, it will present the self-signed certificate to the client, which will trigger an untrusted certificate warning2. This way, the security admin can ensure that users are aware of any potential risks when accessing HTTPS sites with untrusted certificates.
• A web server certificate signed by the organization’s PKI (A) or a subordinate Certificate Authority certificate signed by the organization’s PKI © are not good choices for an SSL Forward Untrust certificate because they are trusted by the client browsers that have the organization’s root CA installed1. This means that if the firewall observes an invalid or untrusted security certificate from the server, it will present the web server or subordinate CA certificate to the client, which will not trigger an untrusted certificate warning2. This way, the security admin cannot ensure that users are aware of any potential risks when accessing HTTPS sites with untrusted certificates.
• A web server certificate signed by an external Certificate Authority (D) is not a good choice for an SSL Forward Untrust certificate because it is trusted by most client browsers that have the external CA in their trust store1. This means that if the firewall observes an invalid or untrusted security certificate from the server, it will present the web server certificate to the client, which will not trigger an untrusted certificate warning2. This way, the security admin cannot ensure that users are aware of any potential risks when accessing HTTPS sites with untrusted certificates.

Verified References:

• 1: How to Configure SSL Decryption - Palo Alto Networks Knowledge Base
• 2: How to Implement and Test SSL Decryption - Palo Alto Networks Knowledge Base

In an active/active high availability (HA) firewall pair, when a firewall experiences a failure of a monitored path, it enters the “Tentative” state1. This state indicates that the firewall is synchronizing sessions and configurations from its peer due to a failure or a change in monitored objects such as a link or path. The firewall in this state is not fully functional but is working towards resuming normal operations by syncing with its peer. Therefore, the correct answer is B. Tentative.

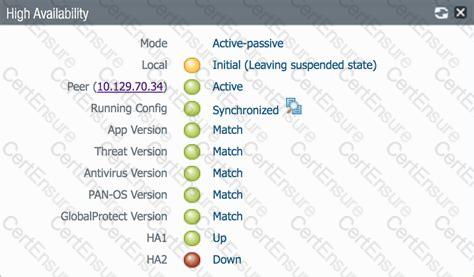

Firewall Stuck in Initial (Leaving Suspended State) - Palo Alto Networks
